LIQUID TEMPERATURE SENSOR 1/8" NPT 0-300 °F

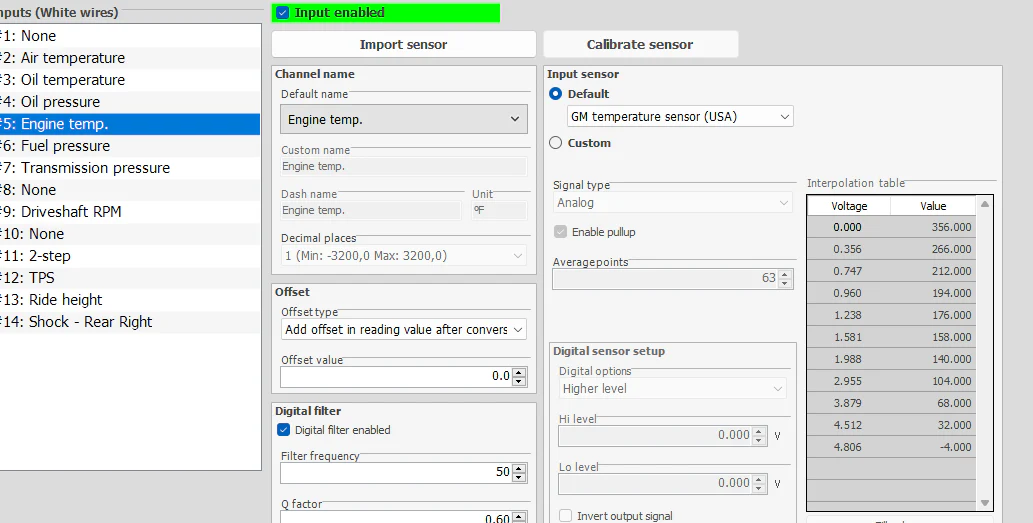

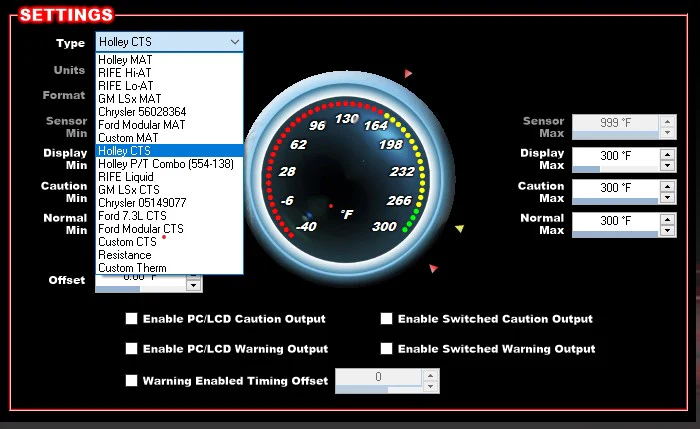

Our new liquid temperature sensor features an extra long tip to get well into the liquid you need to measure. Standard GM coolant scaling means easy dropdown setup for most ECUs on the market however we do provide a scaling chart if needed.

Also features the standard 2-wire GM Packard connector. The mating connector is available as an add on when you order.

For oil pans with -08 ORB plugs get the adapter fitting and no drilling or welding on your pan, simple bolt-on installation.

Fahrenheit	Ohms
0	25,580
14	16,321
23	12,413
32	9,516
41	7,354
50	5,728
59	4,496
68	3,555
77	2,830
86	2,268
95	1,828
104	1,483
113	1,120
122	992
131	819
140	679
149	566
158	475
167	400
176	338
185	287
194	249
203	210
212	180
221	156
230	135
239	117
248	102
257	89
266	78
275	69
280	61
293	54
302	48
